Integrating OptiPack into SAP EWM

Introduction

Below is a schematic overview of how the cartonization process is handled today in SAP (on the left) and how it would look like after integrating with our OptiPack API (on the right).

SAP EWM supports HU (Handling Unit) creation, including CAP (Cartonization Planning) and PSHU (planned shipping HUs). In practice, many sites run static or template-based rules:

• Dimensions from material/packaging master exist but are underused; combining multiple items into the most efficient HU layout is often not optimized.
• There's no spatial optimization (3D packing, allowed orientations, weight constraints, etc.).

This is where OptiPack comes in. The OptiPack API can be called right after Warehouse Task Creation, when all materials and their dimensions are known but before SAP decides on how to pack them into Handling Units. We recommend also running the SAP standard HU creation rules, but not persisting them. This could serve as a fallback in the unlikely event something goes wrong, making OptiPack non-intrusive. Your operations can just continue normally while you gain efficiency improvements.

In the remainder of this guide, we demonstrate how we could generate a request (JSON format) that could be sent to our API. It is important to note that, in order to keep this guide as general as possible, many assumptions and simplifications were made. Your company might have some specific details that would require some modifications to the examples below.

Required API data

Below is a minimal JSON for the /pack endpoint:

1{
2  "orders": [
3    {
4      "id": "order_1",
5      "items": [
6        {
7          "id": "item_1",
8          "width": 1,
9          "height": 1,
10          "depth": 1,
11          "quantity": 4
12        }
13      ]
14    }
15  ],
16  "bins": [
17    {
18      "id": "bin_1",
19      "width": 1,
20      "height": 1,
21      "depth": 1
22    }
23  ]
24}

It consists of the following pieces of informations:

• orders: a list of the orders that must be packed; items of different orders will never be packed onto the same bin.
• bins: the different bins (HUs) available in the warehouse, with their dimensional information. Many other attributes & constraints are supported as well, for the full list, we refer to our API documentation.

For every order a list of items has to be provided, this contains information such as:

• width, height, depth: the three dimensions of every item
• quantity: how many of this item were ordered
• many other possible constraints & attributes such as its weight, the weight it can carry, allowed orientations, sequence values and many many more. See our API documentation for a complete list.

SAP Data tables

In the following subsections, we’ll have a look at each of the relevant data tables that correspond to the components of the schematic overview above which will allow us to construct a JSON that serves as a request for our API. We’ll look at the data both in the SAP GUI and by making a query in the ABAP (Advanced Business Application Programming) language.

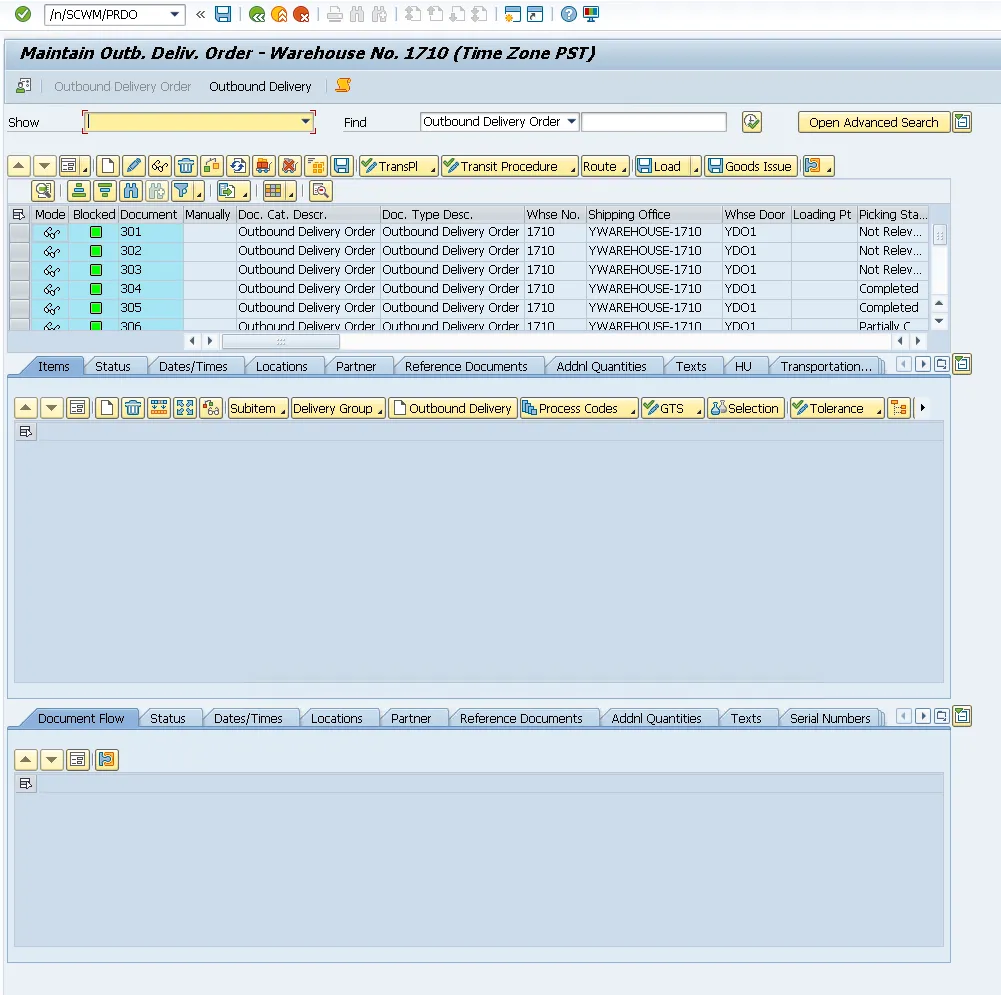

Outbound Deliveries Orders (/SCWM/PRDO, /SCDL/*)

To populate the order list of our request, we query the delivery documents in our system and which items + quantities they contain. In the GUI, we can view detailed information for each ODO in /n/SCWM/PRDO.

General Material Data (MM03 / MARA)

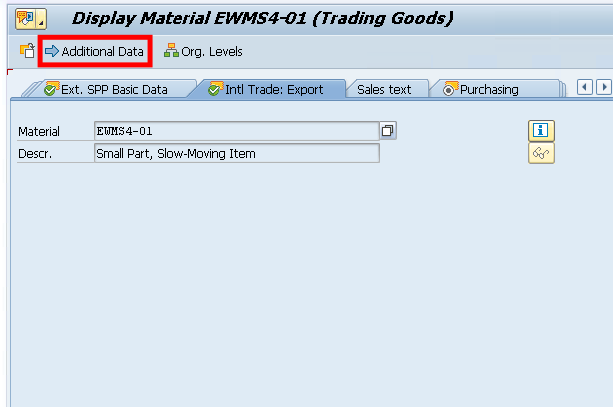

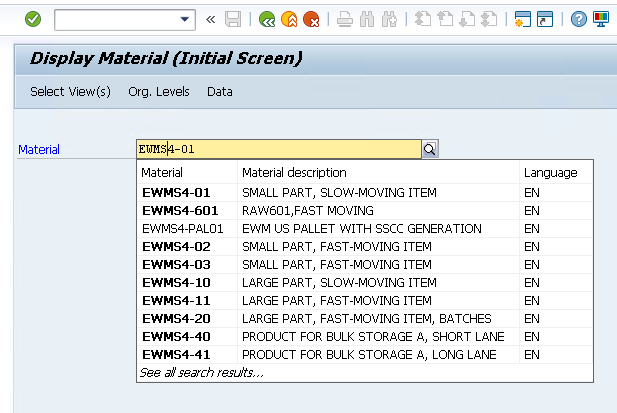

There’s two ways to inspect the material master data (both for SKUs and packaging material / handling units). Either the MM03 transaction to inspect each material individually, or the MARA (or MARM more specifically) table through the table viewer (/nSE16)

The most important, and mandatory information, are the dimensions of each product. These can be found in Additional Data > Units of Measure

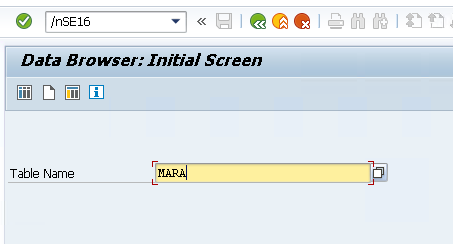

To view all information in 1 table view, we can use the /nSE16 command and navigate to the MARA table.

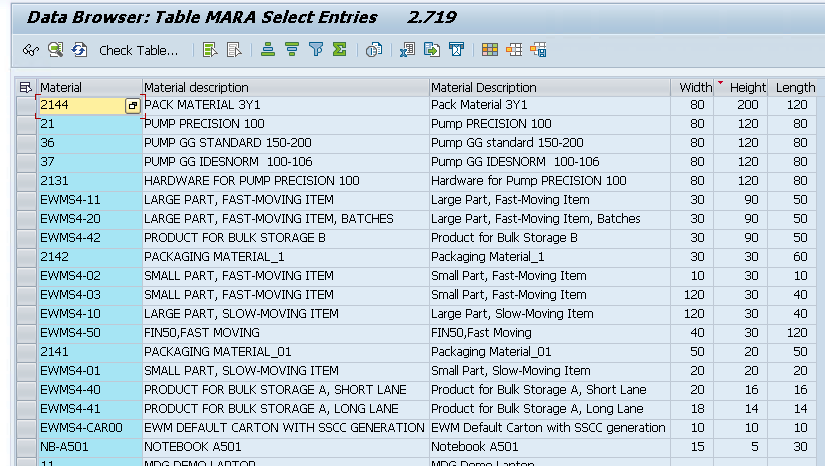

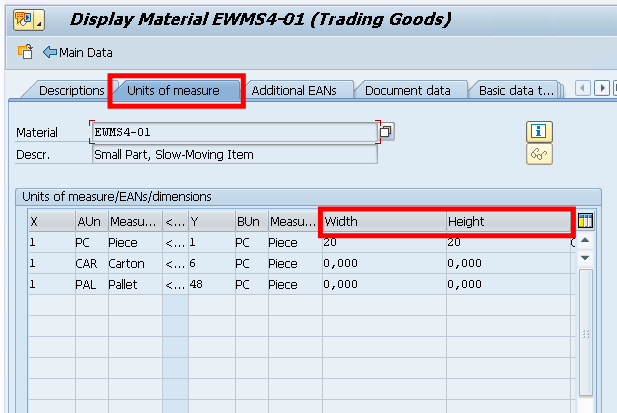

Below is a view of both SKUs and HUs where the dimensions have been filled in for:

We can now write individual queries to get both the items of the ODOs in our system, as well as the different packaging types in which we can cartonize:

Querying the ordered items with dimensions

1REPORT z_list_procio_item_dims.
2
3"--- Result row (DOCNO instead of VBELN because we're in EWM)
4TYPES: BEGIN OF ty_row,
5         docno    TYPE /scdl/dl_docno_int,
6         matnr    TYPE matnr,
7         width    TYPE mara-breit,
8         height   TYPE mara-hoehe,
9         depth    TYPE mara-laeng,
10         quantity TYPE p DECIMALS 3,
11       END OF ty_row.
12TYPES tt_row TYPE STANDARD TABLE OF ty_row WITH EMPTY KEY.
13
14"--- Temp read from /SCDL/DB_PROCI_O
15TYPES: BEGIN OF ty_pi,
16         docno     TYPE /scdl/dl_docno_int,
17         itemno    TYPE /scdl/dl_itemno,
18         productno TYPE /scdl/dl_productno,
19         qty       TYPE p DECIMALS 3,
20       END OF ty_pi.
21DATA lt_pi TYPE STANDARD TABLE OF ty_pi.
22
23START-OF-SELECTION.
24
25" 1) Read ODO items (warehouse 1710, doccat PDO)
26SELECT docno, itemno, productno
27  FROM /scdl/db_proci_o
28  INTO TABLE @DATA(lt_raw)
29  WHERE /scwm/whno = '1710'
30    AND doccat     = 'PDO'.
31
32IF lt_raw IS INITIAL.
33  WRITE: / 'No /SCDL/DB_PROCI_O items for LGNUM 1710.'.
34  LEAVE PROGRAM.
35ENDIF.
36
37" Resolve quantity via common field names (QTY, QTY_REQ, REQ_QTY, QREQ)
38FIELD-SYMBOLS: <r> TYPE any, <q> TYPE any.
39DATA ls_pi TYPE ty_pi.
40LOOP AT lt_raw ASSIGNING <r>.
41  CLEAR ls_pi.
42  ASSIGN COMPONENT 'DOCNO'     OF STRUCTURE <r> TO FIELD-SYMBOL(<d>). IF sy-subrc = 0. ls_pi-docno     = <d>. ENDIF.
43  ASSIGN COMPONENT 'ITEMNO'    OF STRUCTURE <r> TO FIELD-SYMBOL(<i>). IF sy-subrc = 0. ls_pi-itemno    = <i>. ENDIF.
44  ASSIGN COMPONENT 'PRODUCTNO' OF STRUCTURE <r> TO FIELD-SYMBOL(<p>). IF sy-subrc = 0. ls_pi-productno = <p>. ENDIF.
45
46  ASSIGN COMPONENT 'QTY'       OF STRUCTURE <r> TO <q>.
47  IF sy-subrc <> 0. ASSIGN COMPONENT 'QTY_REQ' OF STRUCTURE <r> TO <q>. ENDIF.
48  IF sy-subrc <> 0. ASSIGN COMPONENT 'REQ_QTY' OF STRUCTURE <r> TO <q>. ENDIF.
49  IF sy-subrc <> 0. ASSIGN COMPONENT 'QREQ'    OF STRUCTURE <r> TO <q>. ENDIF.
50  IF sy-subrc = 0. ls_pi-qty = <q>. ELSE. ls_pi-qty = 1. ENDIF.
51
52  APPEND ls_pi TO lt_pi.
53ENDLOOP.
54
55" 2) Collect distinct MATNRs and read MARA dimensions (non-zero only)
56TYPES: BEGIN OF ty_mkey, matnr TYPE matnr, END OF ty_mkey.
57DATA lt_mkeys TYPE SORTED TABLE OF ty_mkey WITH UNIQUE KEY matnr.
58
59FIELD-SYMBOLS <pi> LIKE LINE OF lt_pi.
60LOOP AT lt_pi ASSIGNING <pi>.
61  DATA lv_m TYPE matnr.
62  lv_m = <pi>-productno.
63  CALL FUNCTION 'CONVERSION_EXIT_ALPHA_INPUT'
64    EXPORTING input  = lv_m
65    IMPORTING output = lv_m.
66  INSERT VALUE ty_mkey( matnr = lv_m ) INTO TABLE lt_mkeys.
67ENDLOOP.
68
69SELECT matnr, laeng, breit, hoehe
70  FROM mara
71  INTO TABLE @DATA(lt_mdim)
72  FOR ALL ENTRIES IN @lt_mkeys
73  WHERE matnr = @lt_mkeys-matnr

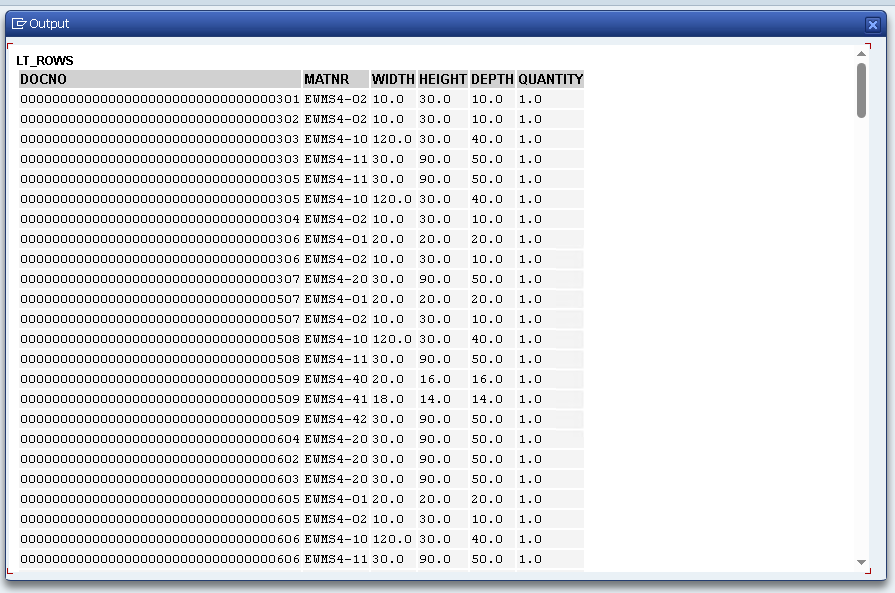

74    AND laeng > 0 AND breit > 0 AND hoehe > 0.
75
76" hashed map MATNR -> dims
77TYPES: BEGIN OF ty_m2d,
78         matnr TYPE matnr,
79         laeng TYPE mara-laeng,
80         breit TYPE mara-breit,
81         hoehe TYPE mara-hoehe,
82       END OF ty_m2d.
83DATA lt_m2d TYPE HASHED TABLE OF ty_m2d WITH UNIQUE KEY matnr.
84
85FIELD-SYMBOLS <md> LIKE LINE OF lt_mdim.
86LOOP AT lt_mdim ASSIGNING <md>.
87  INSERT VALUE ty_m2d( matnr = <md>-matnr
88                       laeng = <md>-laeng
89                       breit = <md>-breit
90                       hoehe = <md>-hoehe ) INTO TABLE lt_m2d.
91ENDLOOP.
92
93" 3) Build result rows; drop items without maintained (non-zero) dims
94DATA lt_rows TYPE tt_row.
95FIELD-SYMBOLS <m2d> LIKE LINE OF lt_m2d.
96DATA ls_row TYPE ty_row.
97
98LOOP AT lt_pi ASSIGNING <pi>.
99  DATA lv_m_int TYPE matnr.
100  lv_m_int = <pi>-productno.
101  CALL FUNCTION 'CONVERSION_EXIT_ALPHA_INPUT'
102    EXPORTING input  = lv_m_int
103    IMPORTING output = lv_m_int.
104
105  READ TABLE lt_m2d ASSIGNING <m2d> WITH TABLE KEY matnr = lv_m_int.
106  IF sy-subrc <> 0.
107    CONTINUE.
108  ENDIF.
109
110  CLEAR ls_row.
111  ls_row-docno    = <pi>-docno.
112  ls_row-quantity = <pi>-qty.
113  ls_row-width    = <m2d>-breit.
114  ls_row-height   = <m2d>-hoehe.
115  ls_row-depth    = <m2d>-laeng.
116
117  " pretty MATNR for display
118  ls_row-matnr = lv_m_int.
119  CALL FUNCTION 'CONVERSION_EXIT_ALPHA_OUTPUT'
120    EXPORTING input  = ls_row-matnr
121    IMPORTING output = ls_row-matnr.
122
123  APPEND ls_row TO lt_rows.
124ENDLOOP.
125
126cl_demo_output=>display( lt_rows ).

Querying the packaging types with dimensions

1REPORT z_list_hu_bins_min.
2
3" Output: VERP material id + maintained dims (non-zero only)
4TYPES: BEGIN OF ty_bin,
5         id     TYPE matnr,
6         width  TYPE mara-breit,
7         height TYPE mara-hoehe,
8         depth  TYPE mara-laeng,
9       END OF ty_bin.
10DATA lt_bins TYPE STANDARD TABLE OF ty_bin WITH EMPTY KEY.
11
12" Read VERP materials where all three dims are maintained (>0)
13SELECT matnr AS id,
14       breit AS width,
15       hoehe AS height,
16       laeng AS depth
17  FROM mara
18  INTO TABLE @lt_bins
19  WHERE mtart = 'VERP'
20    AND laeng > 0 AND breit > 0 AND hoehe > 0.
21
22" Optional: show MATNR in external format
23FIELD-SYMBOLS <b> LIKE LINE OF lt_bins.
24LOOP AT lt_bins ASSIGNING <b>.
25  CALL FUNCTION 'CONVERSION_EXIT_ALPHA_OUTPUT'
26    EXPORTING input  = <b>-id
27    IMPORTING output = <b>-id.
28ENDLOOP.
29
30IF lt_bins IS INITIAL.
31  WRITE: / 'No VERP materials with non-zero dimensions found.'.
32  LEAVE PROGRAM.
33ENDIF.
34
35cl_demo_output=>display( lt_bins ).

Setting up a connection with OptiPack

We need to allow our SAP system to make a connection the OptiPack API. This can be configured in /nSTRUST and /nSM59. For this, we need to download the Certificate of our OptiPack API to upload it here. The instructions are very similar to how a connection to our OptiPick API has to be set up, so the screenshots below are focused on that. The certificate can be downloaded from the browser (https://optiapp.api.optioryx.com). Below are screenshots to do it in Google Chrome:

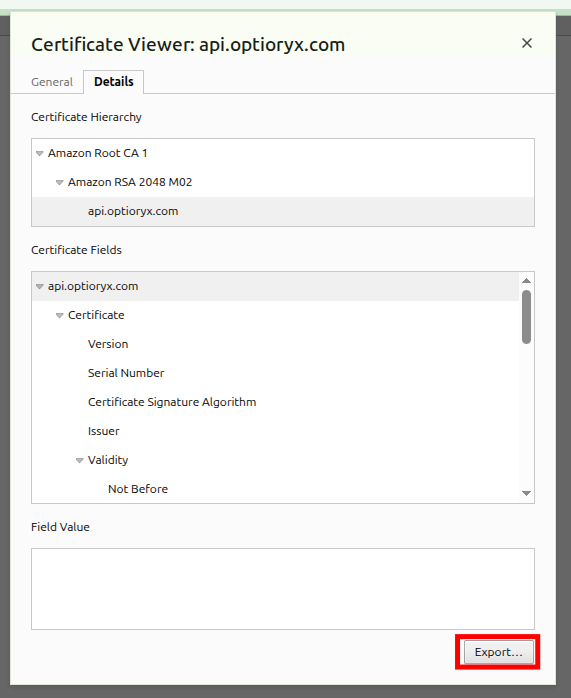

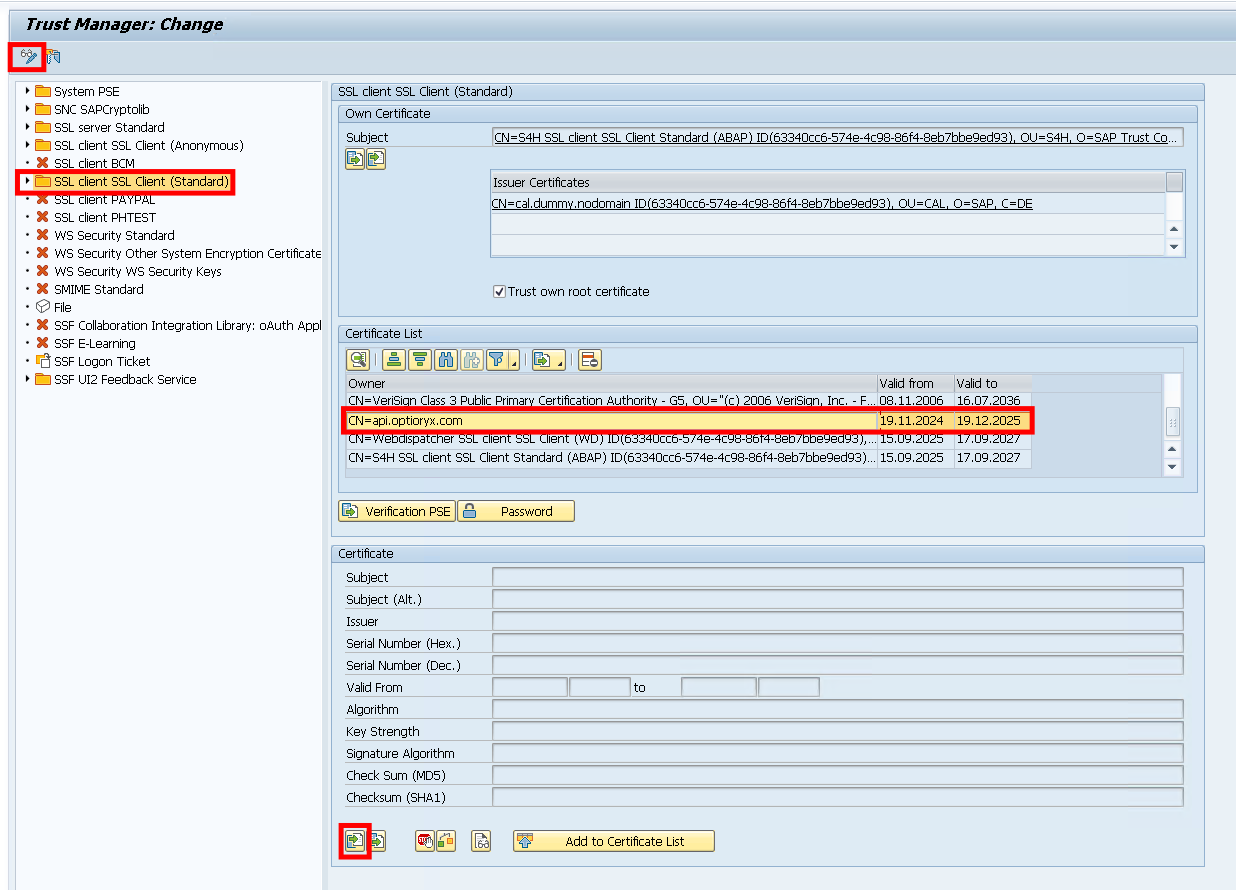

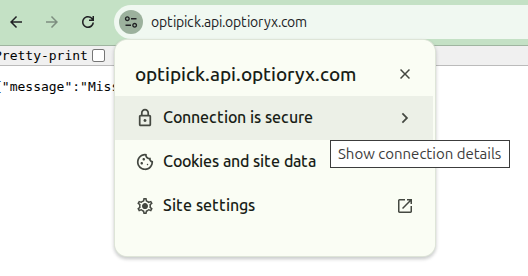

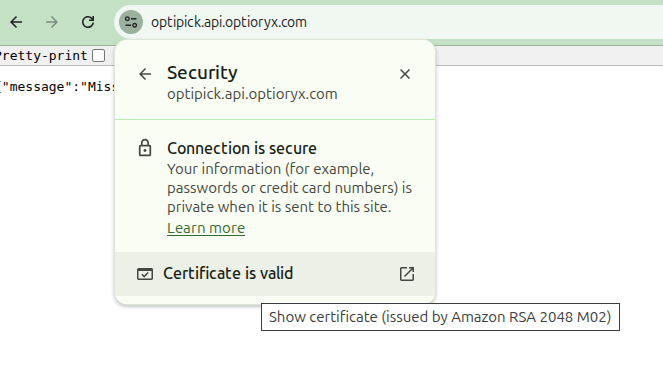

Most export formats will work, so choose your favourite. Afterwards, go to /nSTRUST in SAP and upload the certificate here. You should see it added in the Certificate List (middle panel).

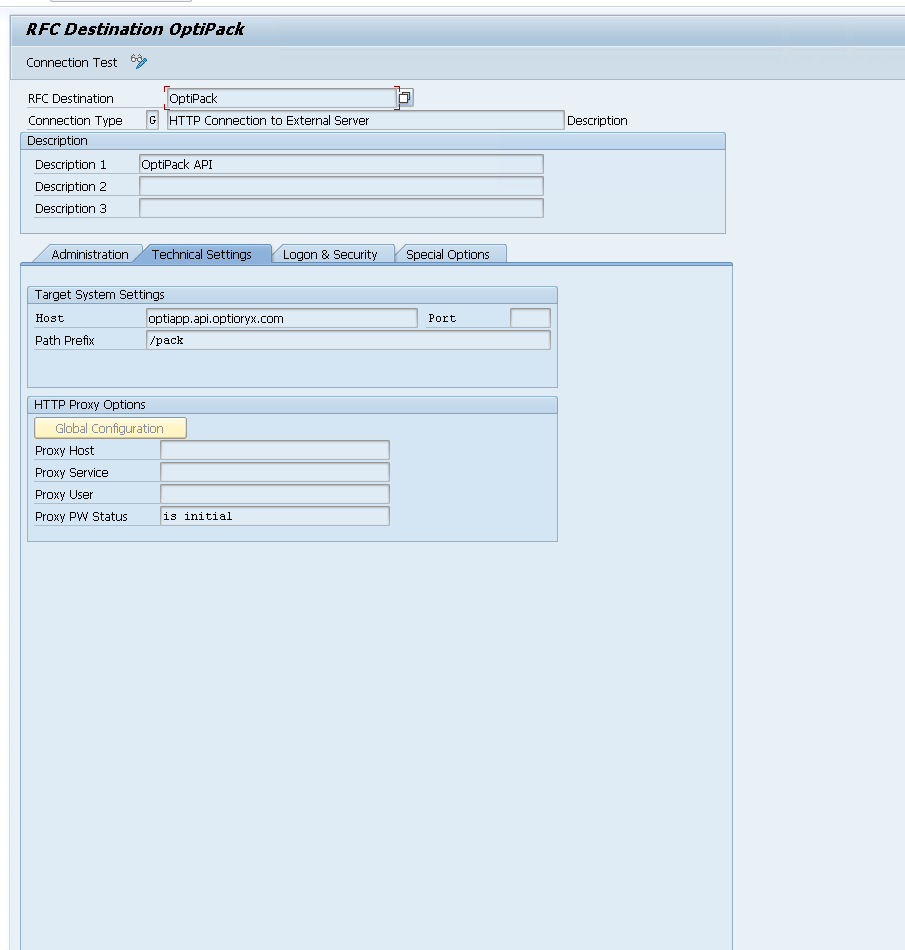

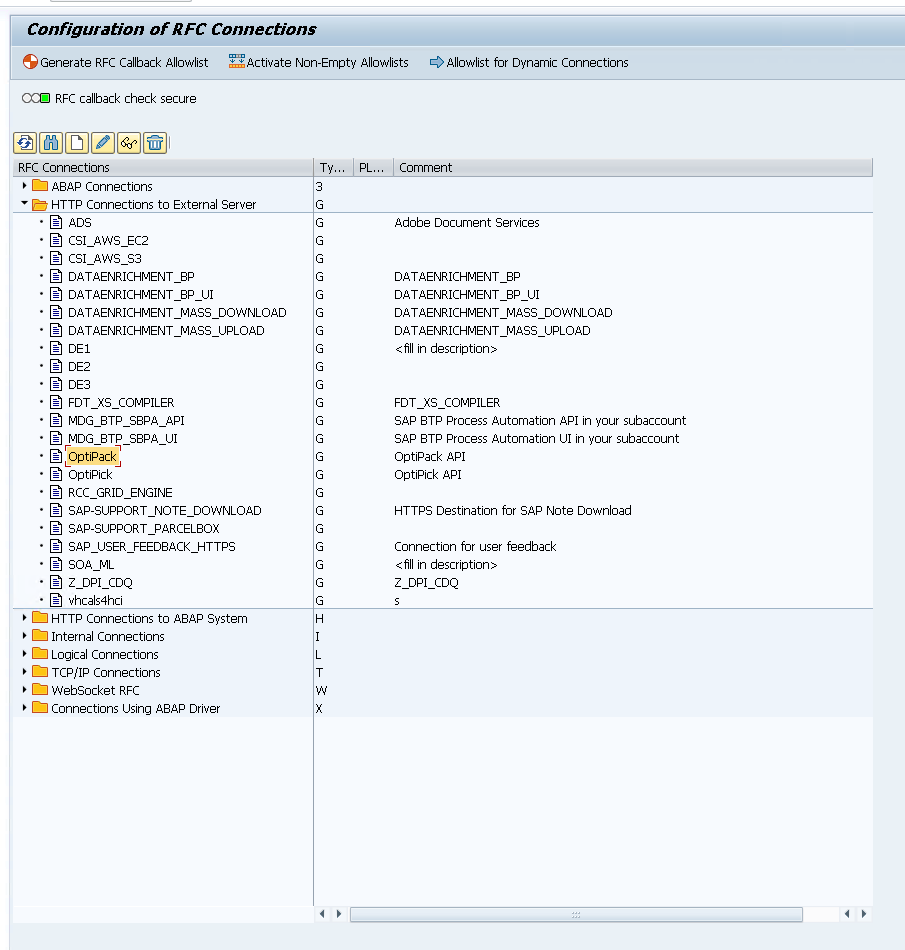

After adding the certificate, we add an extra connection using /nSM59.

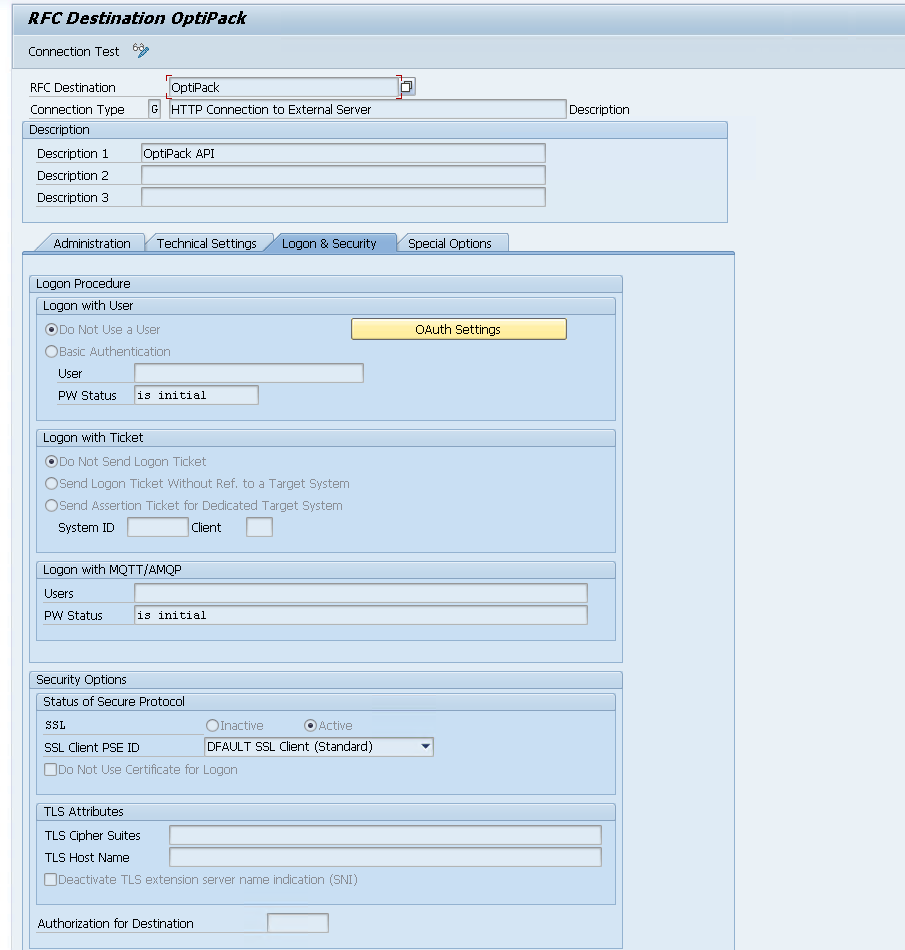

In here, create a new “HTTP Connection to External Server”.Then fill in the following information in the “Technical Settings” and “Logon & Security” tabs.

When configured, you can run a “Connection Test” from here:

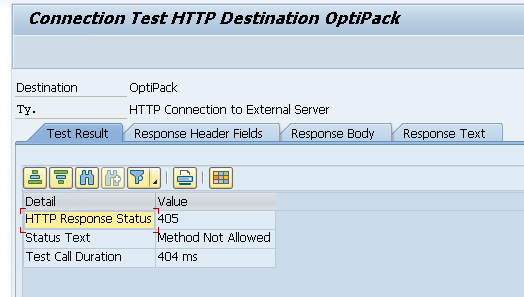

We get Error 405 from our API, but this makes sense as the Connection Test just sends a simple GET request (while our API expects a POST). This confirms our connection works! Within ABAP we can use this with the http_client as follows:

1DATA: lo_http      TYPE REF TO if_http_client.
2
3cl_http_client=>create_by_destination(
4  EXPORTING destination = 'OptiPack'
5  IMPORTING client      = lo_http ).

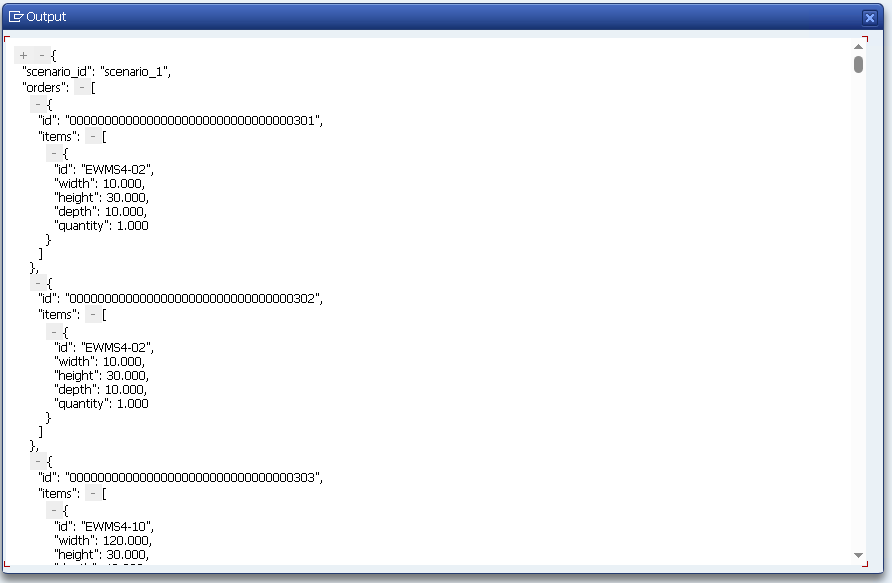

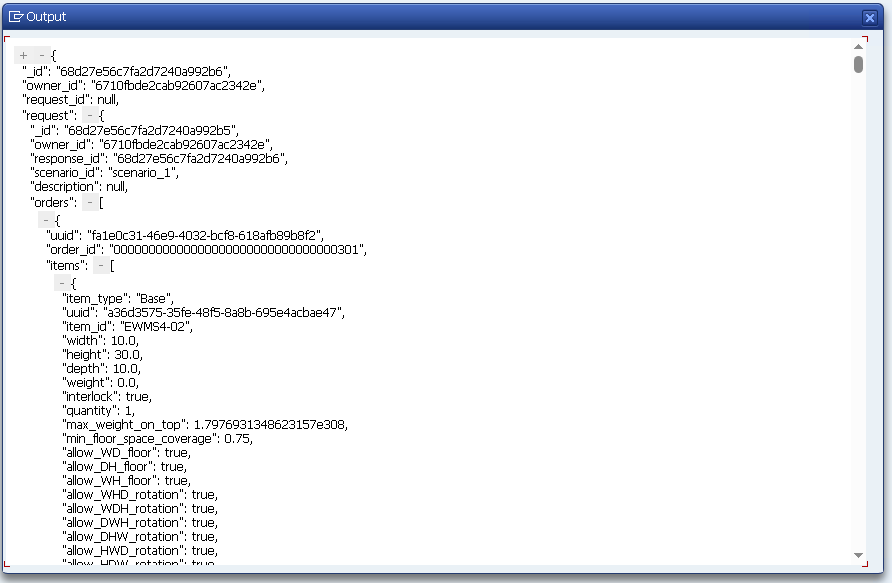

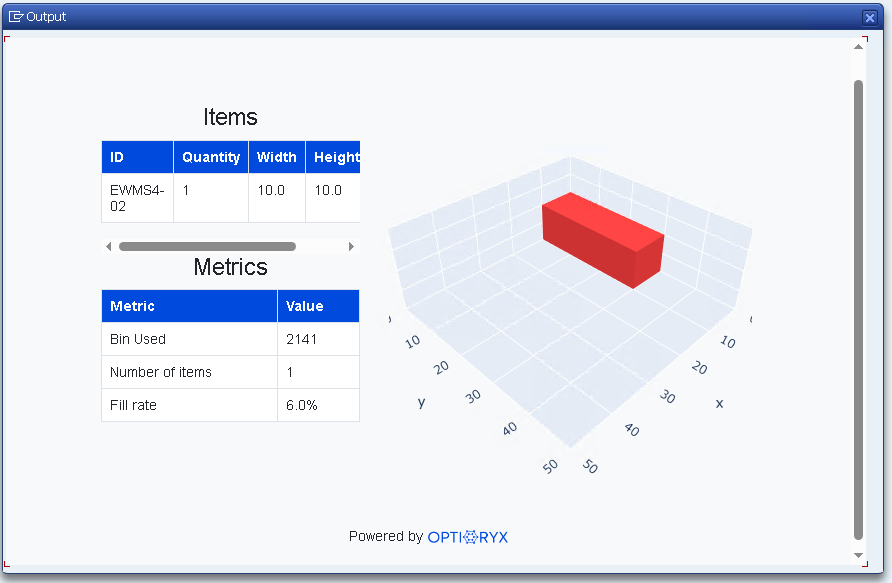

ABAP script to generate request and visualise

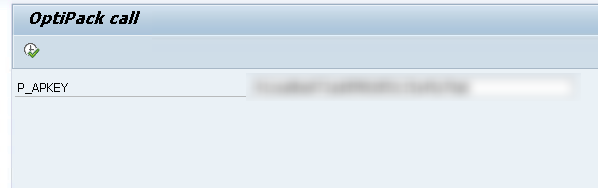

We now have all necessary information to send a first request to the OptiPack API. We first query the ODOs with their items and quantities, we then join this with the MARA table to get the necessary dimension information. We filter away order lines where one or more of the dimensions are undefined or equal to 0. Afterwards, we get the packaging materials (type = VERP). We then construct the JSON to send to our API. In the end, we first visualise the response in JSON format that we get back from the API. After that, we also take the first order from the response to call a second endpoint that returns a HTML with an interactive visualisation of that order.

1REPORT zopti_pack_call_procio.
2
3"=============================
4" tiny JSON helper
5"=============================
6CLASS lcl_json DEFINITION FINAL.
7  PUBLIC SECTION.
8    CLASS-METHODS ser IMPORTING data TYPE any RETURNING VALUE(json) TYPE string.
9ENDCLASS.
10CLASS lcl_json IMPLEMENTATION.
11  METHOD ser.
12    json = /ui2/cl_json=>serialize(
13             data        = data
14             pretty_name = /ui2/cl_json=>pretty_mode-low_case ).
15  ENDMETHOD.
16ENDCLASS.
17
18"=============================
19" parameter(s)
20"=============================
21PARAMETERS: p_apkey TYPE string LOWER CASE OBLIGATORY
22              DEFAULT '<CENSORED>'.
23
24"=============================
25" simple types for payload
26"=============================
27TYPES: BEGIN OF ty_item_json,
28         id       TYPE string,
29         width    TYPE p DECIMALS 3,
30         height   TYPE p DECIMALS 3,
31         depth    TYPE p DECIMALS 3,
32         quantity TYPE p DECIMALS 3,
33       END OF ty_item_json.
34TYPES tt_item_json TYPE STANDARD TABLE OF ty_item_json WITH EMPTY KEY.
35
36TYPES: BEGIN OF ty_order_json,
37         id    TYPE string,
38         items TYPE tt_item_json,
39       END OF ty_order_json.
40TYPES tt_order_json TYPE STANDARD TABLE OF ty_order_json WITH EMPTY KEY.
41
42TYPES: BEGIN OF ty_bin_json,
43         id     TYPE string,
44         width  TYPE p DECIMALS 3,
45         height TYPE p DECIMALS 3,
46         depth  TYPE p DECIMALS 3,
47       END OF ty_bin_json.
48TYPES tt_bin_json TYPE STANDARD TABLE OF ty_bin_json WITH EMPTY KEY.
49
50TYPES: BEGIN OF ty_payload,
51         scenario_id TYPE string,
52         orders      TYPE tt_order_json,
53         bins        TYPE tt_bin_json,
54       END OF ty_payload.
55
56"=============================
57" 1) Read ODO items from /SCDL/DB_PROCI_O
58"=============================
59TYPES: BEGIN OF ty_proci_min,
60         docno     TYPE /scdl/dl_docno_int,   " internal ODO number
61         itemno    TYPE /scdl/dl_itemno,      " item number
62         productno TYPE /scdl/dl_productno,   " material
63         qty       TYPE p DECIMALS 3,         " best-effort quantity
64       END OF ty_proci_min.
65DATA lt_proci TYPE STANDARD TABLE OF ty_proci_min.
66
67START-OF-SELECTION.
68
69" Raw read (without qty yet)
70SELECT docno, itemno, productno
71  FROM /scdl/db_proci_o
72  INTO TABLE @DATA(lt_raw)
73  WHERE /scwm/whno = '1710'
74    AND doccat     = 'PDO'.
75
76IF lt_raw IS INITIAL.
77  WRITE: / 'No /SCDL/DB_PROCI_O items for LGNUM 1710.'.
78  LEAVE PROGRAM.
79ENDIF.
80
81" Copy + resolve quantity via dynamic component names (QTY variants)
82FIELD-SYMBOLS: <r>  TYPE any,
83               <q>  TYPE any.
84DATA ls_min TYPE ty_proci_min.
85
86LOOP AT lt_raw ASSIGNING <r>.
87  CLEAR: ls_min, ls_min-qty.
88  ASSIGN COMPONENT 'DOCNO'     OF STRUCTURE <r> TO FIELD-SYMBOL(<d>). IF sy-subrc = 0. ls_min-docno     = <d>. ENDIF.
89  ASSIGN COMPONENT 'ITEMNO'    OF STRUCTURE <r> TO FIELD-SYMBOL(<i>). IF sy-subrc = 0. ls_min-itemno    = <i>. ENDIF.
90  ASSIGN COMPONENT 'PRODUCTNO' OF STRUCTURE <r> TO FIELD-SYMBOL(<p>). IF sy-subrc = 0. ls_min-productno = <p>. ENDIF.
91
92  " try common quantity field names:
93  IF sy-subrc = 0.
94    ASSIGN COMPONENT 'QTY'       OF STRUCTURE <r> TO <q>.
95    IF sy-subrc <> 0. ASSIGN COMPONENT 'QTY_REQ' OF STRUCTURE <r> TO <q>. ENDIF.
96    IF sy-subrc <> 0. ASSIGN COMPONENT 'REQ_QTY' OF STRUCTURE <r> TO <q>. ENDIF.
97    IF sy-subrc <> 0. ASSIGN COMPONENT 'QREQ'    OF STRUCTURE <r> TO <q>. ENDIF.
98
99    IF sy-subrc = 0.
100      ls_min-qty = <q>.
101    ELSE.
102      ls_min-qty = 1. " fallback so we always have something
103    ENDIF.
104  ENDIF.
105
106  APPEND ls_min TO lt_proci.
107ENDLOOP.
108
109"=============================
110" 2) Read MARA dimensions (non-zero only) for those materials
111"=============================
112TYPES: BEGIN OF ty_m2d,
113         matnr TYPE matnr,
114         laeng TYPE mara-laeng,
115         breit TYPE mara-breit,
116         hoehe TYPE mara-hoehe,
117       END OF ty_m2d.
118DATA lt_m2d TYPE HASHED TABLE OF ty_m2d WITH UNIQUE KEY matnr.
119
120" collect distinct MATNR (internal)
121TYPES: BEGIN OF ty_mkey, matnr TYPE matnr, END OF ty_mkey.
122DATA lt_mkeys TYPE SORTED TABLE OF ty_mkey WITH UNIQUE KEY matnr.
123
124FIELD-SYMBOLS <x> LIKE LINE OF lt_proci.
125LOOP AT lt_proci ASSIGNING <x>.
126  DATA lv_m_int TYPE matnr.
127  lv_m_int = <x>-productno.
128  CALL FUNCTION 'CONVERSION_EXIT_ALPHA_INPUT'
129    EXPORTING input  = lv_m_int
130    IMPORTING output = lv_m_int.
131  INSERT VALUE ty_mkey( matnr = lv_m_int ) INTO TABLE lt_mkeys.
132ENDLOOP.
133
134IF lt_mkeys IS INITIAL.
135  WRITE: / 'No materials to read in MARA.'.
136  LEAVE PROGRAM.
137ENDIF.
138
139SELECT matnr, laeng, breit, hoehe
140  FROM mara
141  INTO TABLE @DATA(lt_mara)
142  FOR ALL ENTRIES IN @lt_mkeys
143  WHERE matnr = @lt_mkeys-matnr
144    AND laeng > 0 AND breit > 0 AND hoehe > 0.
145
146FIELD-SYMBOLS <mrow> LIKE LINE OF lt_mara.
147LOOP AT lt_mara ASSIGNING <mrow>.
148  INSERT VALUE ty_m2d(
149           matnr = <mrow>-matnr
150           laeng = <mrow>-laeng
151           breit = <mrow>-breit
152           hoehe = <mrow>-hoehe ) INTO TABLE lt_m2d.
153ENDLOOP.
154
155"=============================
156" 3) Keep only items whose material has non-zero dims, aggregate per DOCNO+MATNR
157"=============================
158TYPES: BEGIN OF ty_agg_row,
159         docno TYPE /scdl/dl_docno_int,
160         matnr TYPE matnr,
161         qty   TYPE p DECIMALS 3,
162       END OF ty_agg_row.
163DATA lt_agg TYPE HASHED TABLE OF ty_agg_row WITH UNIQUE KEY docno matnr.
164
165FIELD-SYMBOLS: <a> LIKE LINE OF lt_agg.
166
167LOOP AT lt_proci ASSIGNING <x>.
168  DATA lv_m_int2 TYPE matnr.
169  lv_m_int2 = <x>-productno.
170  CALL FUNCTION 'CONVERSION_EXIT_ALPHA_INPUT'
171    EXPORTING input  = lv_m_int2
172    IMPORTING output = lv_m_int2.
173
174  " keep only if we have dims
175  READ TABLE lt_m2d WITH TABLE KEY matnr = lv_m_int2 TRANSPORTING NO FIELDS.
176  IF sy-subrc <> 0.
177    CONTINUE.
178  ENDIF.
179
180  READ TABLE lt_agg ASSIGNING <a> WITH TABLE KEY docno = <x>-docno matnr = lv_m_int2.
181  IF sy-subrc = 0.
182    <a>-qty = <a>-qty + <x>-qty.
183  ELSE.
184    INSERT VALUE ty_agg_row( docno = <x>-docno matnr = lv_m_int2 qty = <x>-qty ) INTO TABLE lt_agg.
185  ENDIF.
186ENDLOOP.
187
188IF lt_agg IS INITIAL.
189  WRITE: / 'Nothing to send (no PROCI_O items with non-zero dimensions).'.
190  LEAVE PROGRAM.
191ENDIF.
192
193"=============================
194" 4) Build orders[] from lt_agg  (order id = DOCNO pretty-printed)
195"=============================
196DATA lt_orders TYPE tt_order_json.
197DATA lt_items  TYPE tt_item_json.
198DATA ls_order  TYPE ty_order_json.
199DATA ls_item   TYPE ty_item_json.
200
201" collect distinct DOCNO
202TYPES: BEGIN OF ty_dkey, docno TYPE /scdl/dl_docno_int, END OF ty_dkey.
203DATA lt_docnos TYPE SORTED TABLE OF ty_dkey WITH UNIQUE KEY docno.
204
205FIELD-SYMBOLS <ar> LIKE LINE OF lt_agg.
206LOOP AT lt_agg ASSIGNING <ar>.
207  INSERT VALUE ty_dkey( docno = <ar>-docno ) INTO TABLE lt_docnos.
208ENDLOOP.
209
210FIELD-SYMBOLS: <dk>  LIKE LINE OF lt_docnos,
211               <m2d> LIKE LINE OF lt_m2d.
212
213LOOP AT lt_docnos ASSIGNING <dk>.
214  CLEAR lt_items.
215  LOOP AT lt_agg ASSIGNING <ar> WHERE docno = <dk>-docno.
216    READ TABLE lt_m2d ASSIGNING <m2d> WITH TABLE KEY matnr = <ar>-matnr.
217    IF sy-subrc <> 0. CONTINUE. ENDIF.
218
219    CLEAR ls_item.
220    ls_item-quantity = <ar>-qty.
221    ls_item-width    = <m2d>-breit.
222    ls_item-height   = <m2d>-hoehe.
223    ls_item-depth    = <m2d>-laeng.
224
225    DATA lv_m_out TYPE matnr. lv_m_out = <ar>-matnr.
226    CALL FUNCTION 'CONVERSION_EXIT_ALPHA_OUTPUT'
227      EXPORTING input  = lv_m_out
228      IMPORTING output = lv_m_out.
229    ls_item-id = lv_m_out.
230
231    APPEND ls_item TO lt_items.
232  ENDLOOP.
233
234  IF lt_items IS INITIAL.
235    CONTINUE.
236  ENDIF.
237
238  " DOCNO is an internal number; still use as order id (string)
239  CLEAR ls_order.
240  ls_order-id    = |{ <dk>-docno }|.
241  ls_order-items = lt_items.
242  APPEND ls_order TO lt_orders.
243ENDLOOP.
244
245"=============================
246" 5) Bins = HU types (VERP) with non-zero dims
247"=============================
248DATA lt_bins TYPE tt_bin_json.
249SELECT matnr AS id, breit AS width, hoehe AS height, laeng AS depth
250  FROM mara
251  INTO TABLE @lt_bins
252  WHERE mtart = 'VERP'
253    AND laeng > 0 AND breit > 0 AND hoehe > 0.
254
255FIELD-SYMBOLS <b> LIKE LINE OF lt_bins.
256LOOP AT lt_bins ASSIGNING <b>.
257  CALL FUNCTION 'CONVERSION_EXIT_ALPHA_OUTPUT'
258    EXPORTING input  = <b>-id
259    IMPORTING output = <b>-id.
260ENDLOOP.
261
262IF lt_bins IS INITIAL.
263  WRITE: / 'No VERP bins with non-zero dimensions.'.
264  LEAVE PROGRAM.
265ENDIF.
266
267"=============================
268" 6) Build payload and POST to OptiPack
269"=============================
270DATA ls_payload TYPE ty_payload.
271ls_payload-scenario_id = 'scenario_1'.
272ls_payload-orders      = lt_orders.
273ls_payload-bins        = lt_bins.
274
275DATA lv_json_req TYPE string.
276lv_json_req = lcl_json=>ser( ls_payload ).
277
278DATA lo_http TYPE REF TO if_http_client.
279cl_http_client=>create_by_destination(
280  EXPORTING destination = 'OptiPack'
281  IMPORTING client      = lo_http ).
282
283lo_http->request->set_method( 'POST' ).
284lo_http->request->set_header_field( name = 'Content-Type' value = 'application/json' ).
285lo_http->request->set_header_field( name = 'accept'       value = 'application/json' ).
286lo_http->request->set_header_field( name = 'x-api-key'    value = p_apkey ).
287lo_http->request->set_cdata( lv_json_req ).
288
289lo_http->send( ).
290lo_http->receive( ).
291
292DATA lv_status   TYPE i.
293DATA lv_reason   TYPE string.
294DATA lv_json_res TYPE string.
295
296lo_http->response->get_status( IMPORTING code = lv_status reason = lv_reason ).
297lv_json_res = lo_http->response->get_cdata( ).
298
299" Pretty-print request & response
300CALL TRANSFORMATION sjson2html
301  SOURCE XML lv_json_req
302  RESULT XML DATA(html_req).
303cl_demo_output=>display_html( cl_abap_codepage=>convert_from( html_req ) ).
304
305CALL TRANSFORMATION sjson2html
306  SOURCE XML lv_json_res
307  RESULT XML DATA(html_res).
308cl_demo_output=>display_html( cl_abap_codepage=>convert_from( html_res ) ).
309
310lo_http->close( ).
311
312"=============================
313" 7) Extract _id and open interactive visualization
314"=============================
315DATA lv_scn_id TYPE string.
316
317TYPES: BEGIN OF ty_pack_res, _id TYPE string, END OF ty_pack_res.
318DATA ls_pack_res TYPE ty_pack_res.
319
320TRY.
321    /ui2/cl_json=>deserialize(
322      EXPORTING json = lv_json_res
323      CHANGING  data = ls_pack_res ).
324    lv_scn_id = ls_pack_res-_id.
325  CATCH cx_root.
326    CLEAR lv_scn_id.
327ENDTRY.
328
329IF lv_scn_id IS INITIAL.
330  FIND REGEX '"_id"s*:s*"([A-Za-z0-9]+)"' IN lv_json_res SUBMATCHES lv_scn_id.
331ENDIF.
332
333IF lv_scn_id IS INITIAL.
334  WRITE: / 'No _id found in OptiPack response – cannot open visualization.'.
335  RETURN.
336ENDIF.
337
338DATA lv_url  TYPE string.
339DATA lv_html TYPE string.
340DATA lo_vis  TYPE REF TO if_http_client.
341
342lv_url = |https://optiapp.api.optioryx.com/visualisation/interactive/{ lv_scn_id }/0/0?offline=false|.
343
344cl_http_client=>create_by_url(
345  EXPORTING url    = lv_url
346  IMPORTING client = lo_vis ).
347
348lo_vis->request->set_method( 'GET' ).
349lo_vis->request->set_header_field( name = 'accept'    value = 'text/html' ).
350lo_vis->request->set_header_field( name = 'x-api-key' value = p_apkey ).
351
352lo_vis->send( ).
353lo_vis->receive( ).
354
355lv_html = lo_vis->response->get_cdata( ).
356lo_vis->close( ).
357
358cl_demo_output=>display_html( lv_html ).

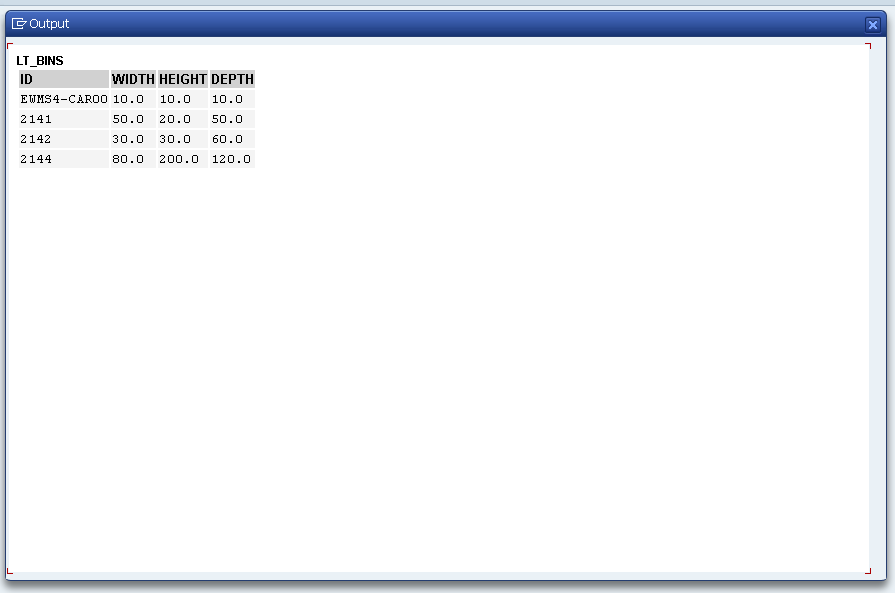

The results of executing this script:

Field mapping (recap)

OptiPack JSON	SAP EWM source
orders[].id	DOCNO from /SCDL/DB_PROCI_O (or ERP VBELN via /SCDL/DB_PROCH_O)
orders[].items[].id	PRODUCTNO (pretty-printed MATNR)
orders[].items[].quantity	QTY or QTY_REQ / REQ_QTY / QREQ in /SCDL/DB_PROCI_O
items[].width/height/depth	MARM preferred, fallback MARA
bins[].id	MATNR of packaging material (VERP)
bins[].width/height/depth	MARM (preferred) or MARA of packaging material

Where to call OptiPack in SAP EWM?

PPF Action on ODO (recommended)

Trigger after WT creation (e.g., at wave release / ODO status). Run OptiPack; if success → store plan; if fail → use SAP CAP/standard. Easy to make idempotent.

Work Center (Packing)

User click → call OptiPack and propose HU assignment interactively.

Background job

Periodic job that picks up ready ODOs, posts plans in batches.

Fallback strategy: always have SAP CAP/standard precomputed but not persisted; persist only if OptiPack fails or is disabled. This keeps the integration non-intrusive.

Setup checklist

• Master data: make sure SKUs and Packaging (VERP) materials have Length/Width/Height maintained (preferably in MARM).
• Warehouse filters: /SCWM/WHNO, DOCCAT match target scope.
• Connectivity: STRUST SSL chain; SM59 destination; proxy/egress allowlist.
• Authorizations: program runs with access to /SCDL/*, MARA/MARM, STRUST, SM59.
• Feature toggle: TVARVC (Z_OPTIPACK_ENABLED) or similar.

Additional Tips & Tricks

Units & conversions (important)

• Prefer MARM, normalize to a single unit (e.g., CM).
• Document orientation mapping: LAENG → depth, BREIT → width, HOEHE → height (as in examples).
• If you adopt MARM, convert with MD_CONVERT_MATERIAL_UNIT or material UoM conversion logic.

Error handling & monitoring

• Wrap HTTP with timeouts; for 429/5xx do retry with backoff.
• Write to Application Log (SLG1) using CL_BAL_LOG (store ODO id(s), request hash, HTTP code, _id).
• Keep calls idempotent: use scenario_id + upsert=true.

Security

• Do not hardcode API keys. Store in SSFS or a protected Z-table; restrict maintenance via auth objects.
• Ensure outbound proxy/firewall allowlist for optiapp.api.optioryx.com.

Performance & scaling

• One API call per order scales much better than bundling orders in a single call.
• Use FOR ALL ENTRIES reads (as you do) and normalize MATNR once.
• For very large volumes, consider a CDS view joining PROCI_O→MARM/MARA so HANA can push down filters.

Result application (if persisting the plan)

• Persist as PSHU or shipping HUs on the ODO; create VEPO assignments accordingly.
• In pick-to-cart flows, you can stamp pick-HUs and then consolidate to ship-HUs per the OptiPack plan.

Governance & transports

• STRUST/SM59 + Z-programs go via DEV→QAS→PRD transports.
• Gate rollout with the feature toggle per warehouse.
